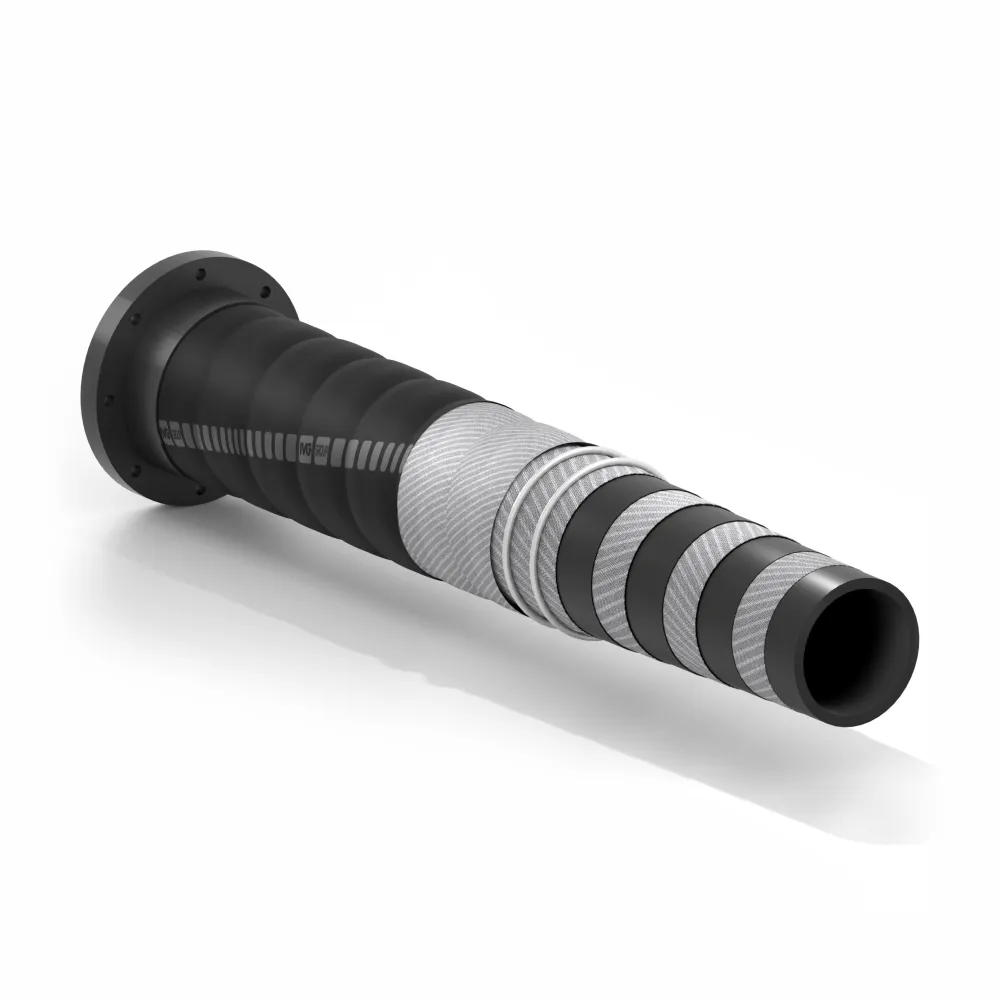

Thracia/LO
Dredging hose with rubber reinforced flanges
Highlights
Resistant to abrasion and sea water
Heavy duty
For suction and delivery
Application
dredging hose mainly used as flexible joint on dredgers and dredging plants. For suction and delivery of sand, gravel, debris and abrasive mixes mixed with water. It complies with the requirements of modern dredging lines. The hose is supplied with rubber reinforced flanges at the both ends which guarantee the best flexibility on the whole length.
Temperature
from -40°C (-40°F) to +70°C (+158°F).
Construction
Tube: black NR/SBR rubber with good resistance to abrasion and tearing.
Reinforcement: high resistance synthetic cord and embedded spiral that allow to maintain the section and guarantee good flexibility.
Cover: black, corrugated (wrapped finish), synthetic rubber, resistant to sea water, weathering and abrasion.
Reinforcement: high resistance synthetic cord and embedded spiral that allow to maintain the section and guarantee good flexibility.
Cover: black, corrugated (wrapped finish), synthetic rubber, resistant to sea water, weathering and abrasion.
Branding:
rubber label with IVG logo.
Available upon request
1. Other sizes. 2. Custom marking.
| Code | Inside diameter | Working pressure | Burst pressure | Weight nominal | Vacuum | Length max | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | bar | psi | bar | psi | kg/m | lbs/ft | bar | m | ft | |
| 1493183 | 250 | 10 | 5 | 75 | 15 | 225 | 32,95 | 22,14 | 0,9 | 12 | 40 |
| 1493825 | 304 | 12 | 5 | 75 | 15 | 225 | 43,84 | 29,46 | 0,9 | 12 | 40 |
| 00054 | 400 | 16 | 10 | 150 | 30 | 450 | 63,46 | 42,65 | 0,9 | 12 | 40 |
| 1492071 | 487 | 19-3/16 | 8 | 120 | 24 | 360 | 87,92 | 59,08 | 0,9 | 12 | 40 |
| 2100276 | 500 | 20 | 10 | 150 | 30 | 450 | 96,77 | 65,03 | 0,9 | 12 | 40 |
| 1493922 | 600 | 24 | 10 | 150 | 30 | 450 | 133,12 | 89,46 | 0,9 | 12 | 40 |
