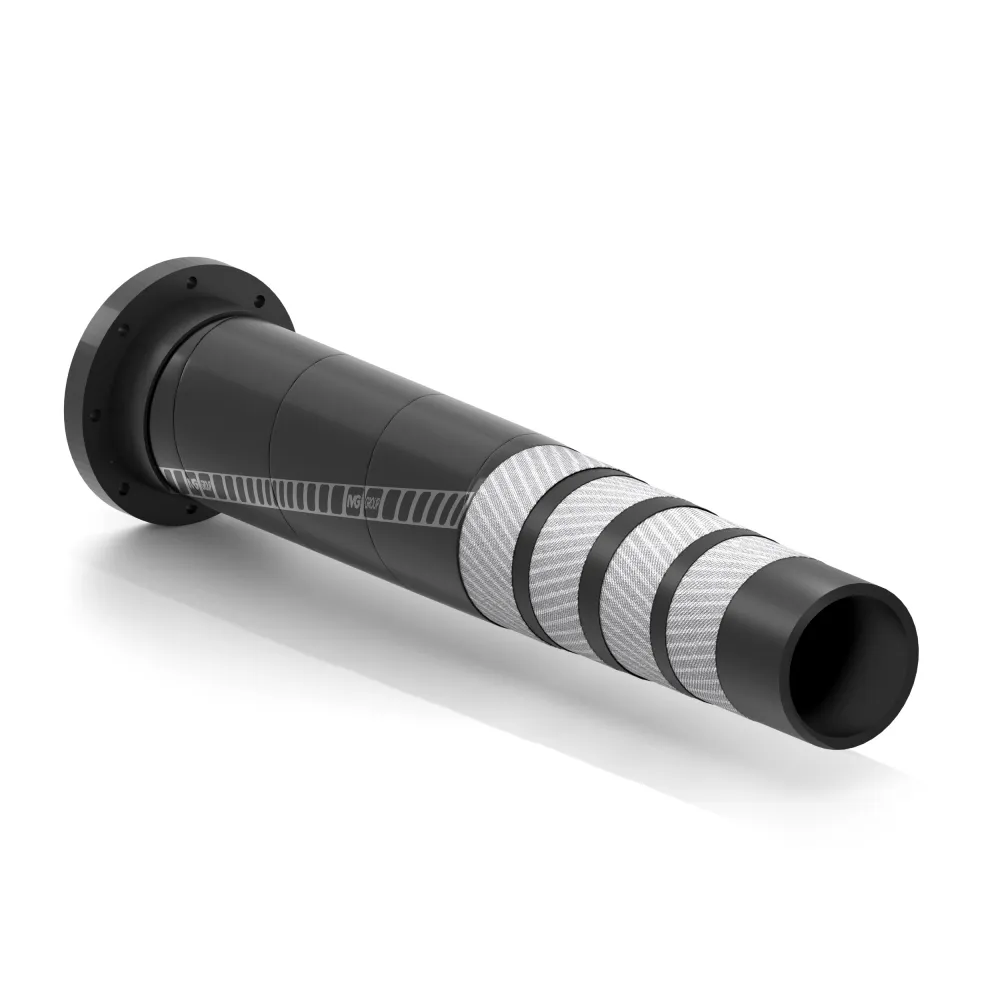

Thracia
Hose with rubber flanges used as a flexible connection in the dredging drain lines
Highlights
Resistant to abrasion and sea water
Long lifespan
The best for drain lines
Application
dredging hose used as a flexible connection in drain lines made of pipes (steel or polyethylene). It convey sand, gravel, debris and abrasive mixes, mixed with water and complies with the requirements of modern dredging lines. It is supplied with reinforced rubber flanges at the ends for better flexibility and to resist wave motion.
Temperature
from -40°C (-40°F) to +70°C (+158°F).
Construction
Tube: black NR/SBR rubber with good resistance to abrasion and tearing.
Reinforcement: high strength synthetic cord, which guarantee to maintain the section and good flexibility.
Cover:
Reinforcement: high strength synthetic cord, which guarantee to maintain the section and good flexibility.
Cover:
black, smooth synthetic rubber (wrapped finish), resistant to sea water, atmospheric agents and abrasion.
Branding:
rubber label with IVG logo.
Available upon request
1. Custom marking. 2. Flanges according tocustomer specifications. 3. Other sizes.
| Code | Inside diameter | Working pressure | Burst pressure | Weight nominal | Length max | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | bar | psi | bar | psi | kg/m | lbs/ft | m | ft | ||
| 1492900 | 200 | 8 | 8 | 120 | 24 | 360 | 11,04 | 7,42 | 12 | 40 | |
| 1493175 | 250 | 10 | 284 | 10 | 150 | 30 | 450 | 14,62 | 9,82 | 12 | 40 |
| 1492330 | 300 | 12 | 8 | 120 | 24 | 360 | 17,37 | 11,67 | 12 | 40 | |
| 1490575 | 400 | 16 | 10 | 150 | 30 | 450 | 25,65 | 17,24 | 12 | 40 | |
| 2100504 | 450 | 18 | 8 | 120 | 24 | 360 | 28,72 | 19,30 | 12 | 40 | |
| 2000532 | 500 | 20 | 10 | 150 | 30 | 450 | 44,41 | 29,84 | 12 | 40 | |
| 2000038 | 550 | 22 | 10 | 150 | 30 | 450 | 48,63 | 32,68 | 12 | 40 | |
| 2000275 | 600 | 24 | 10 | 150 | 30 | 450 | 68,14 | 45,79 | 12 | 40 | |
