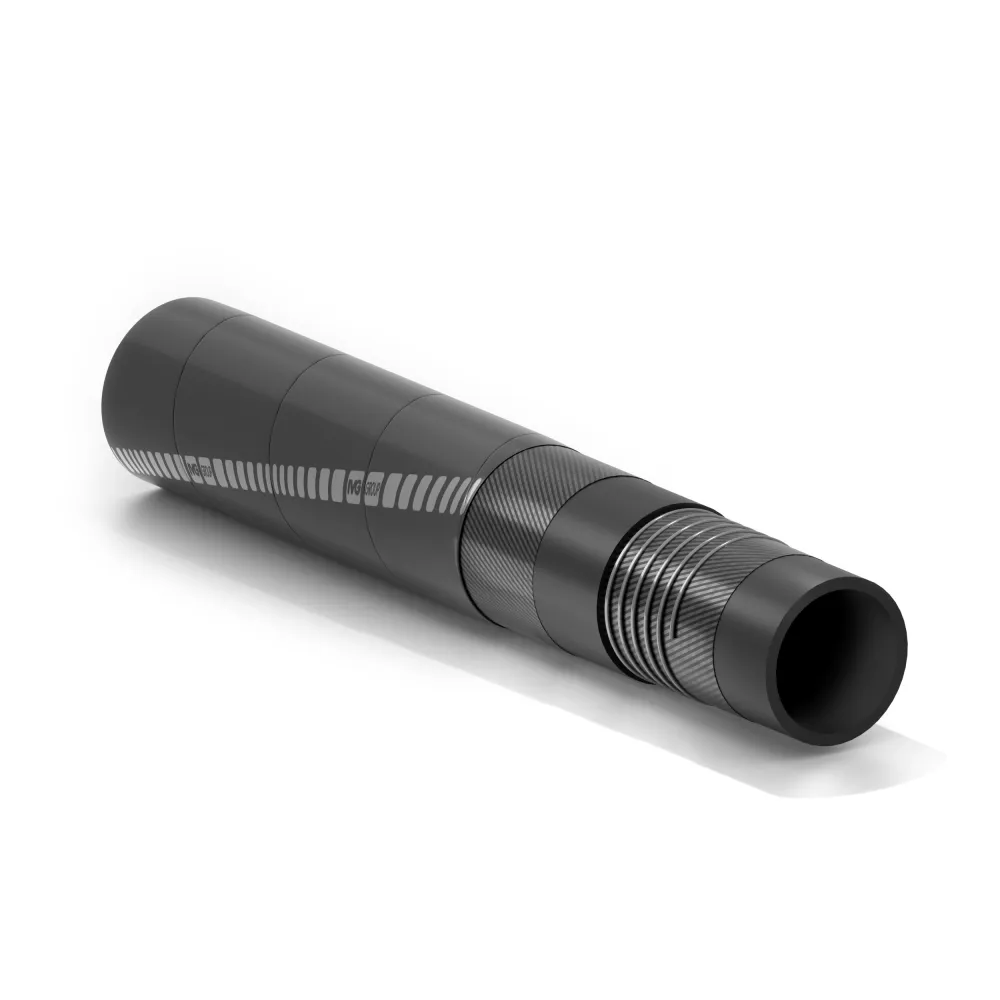

PL Seawater LL CM
Sea water suction and delivery hose
Highlights
Suitable to be rolled up on reel
Made with EPDM rubber
Available with fittings
Application
hardwall hose with steel cord reinforcement suitable to convey sea water on oil rigs.
Suitable to be rolled up on hose reel.
Temperature
from -30°C (-22°F) to +70°C (+158°F).
Construction
Tube:
Reinforcement:
Cover:
black, smooth, EPDM rubber.
Reinforcement:
insert of steel wire plus embedded helix wire.
Cover:
black, smooth (wrapped finish) EPDM rubber, weathering, ozone and sea water resistant.
Branding:
continuous red stripe “IVG Offshore (family logo)...”.
Available upon request
- Softwall hose with inserts of steel wire.
- Different working pressures.
| Code | Inside diameter | Outside diameter | Working pressure | Burst pressure | Weight nominal | Bending radius | Vacuum | Length max | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | bar | psi | bar | psi | kg/m | lbs/ft | mm | inch | bar | m | ft | |
| 1499343 | 76 | 3 | 105,5 | 4,15 | 40 | 600 | 120 | 1800 | 7,24 | 4,87 | 600 | 23,6 | 0,9 | 60 | 200 |
| 1470043 | 102 | 4 | 134,5 | 5,30 | 40 | 600 | 120 | 1800 | 11,08 | 7,45 | 800 | 31,5 | 0,9 | 60 | 200 |
| 1495046 | 127 | 5 | 161 | 6,34 | 40 | 600 | 120 | 1800 | 14,49 | 9,74 | 1000 | 39,4 | 0,9 | 60 | 200 |
| 1441493 | 152 | 6 | 184 | 7,24 | 40 | 600 | 120 | 1800 | 19,52 | 13,12 | 1200 | 47,2 | 0,9 | 60 | 200 |
