Spezia

Regulations

  • EN 12115
EN 12115:2021 (16 bar).
Oil
/ Oil /

Spezia

Fuel and oils delivery hose

Highlights

Suitable for ATEX environment
According to EN 12115
Electrically conductive hose

Application

softwall hose used for the delivery of mineral oils, unleaded gasoline and fuels with aromatic content up to 50%.
Hose suitable for use in an ATEX environment. Tested by the notified body INERIS.

Temperature

from -30°C (-22°F) to +80°C (+176°F).

Electrical Resistance

Ω/T, electrically conductive hose. Electrical resistance guaranteed for lengths equal or lower than 60 m.

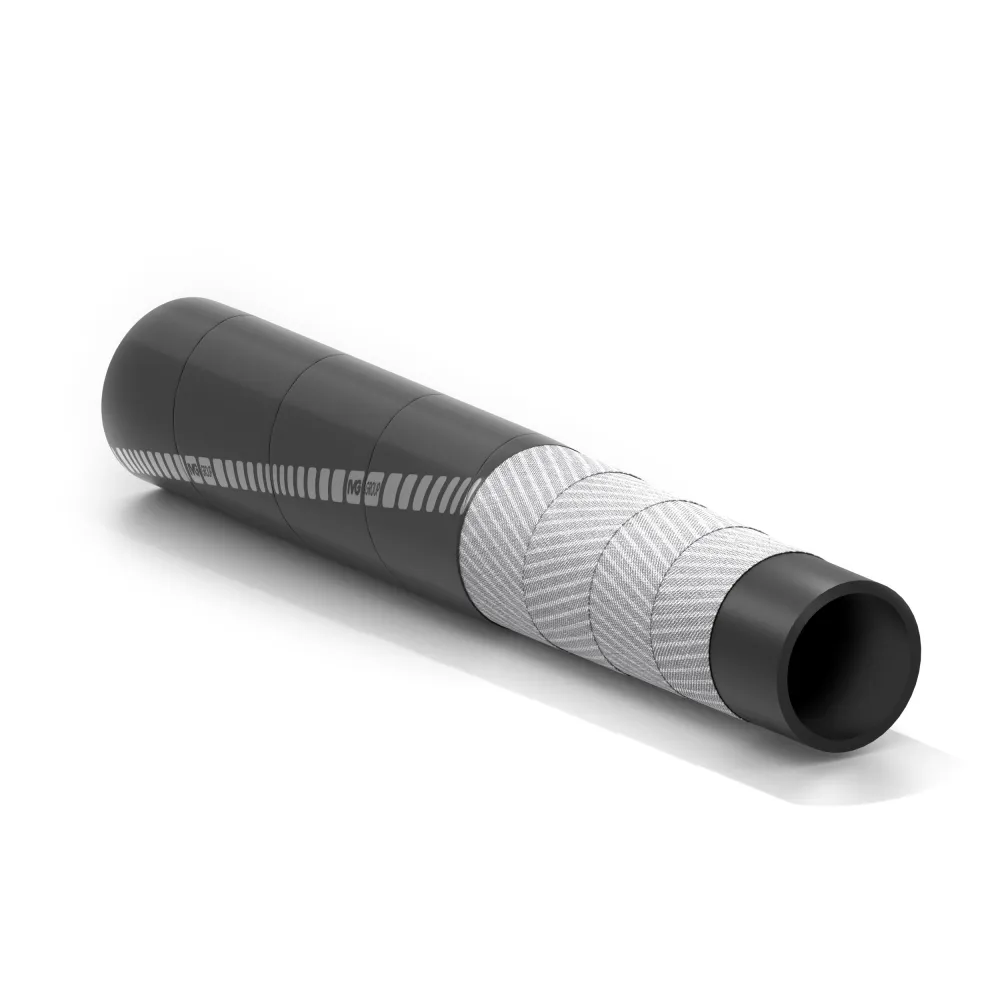

Construction

Tube: black, smooth, NBR1 conductive rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish) synthetic rubber, weathering, abrasion, ozone and oil resistant.
Branding: continuous embossed marking according to EN 12115 + continuous yellow brand “IVG Oil (family logo)...”.

Available upon request

1. Hardwall hose with smooth cover.

Request information

I declare that I have read the privacy policy pursuant to EU Regulation 2016/679

Spezia_it.pdf
Spezia_en.pdf
Spezia_de.pdf
Spezia_fr.pdf
Spezia_ru.pdf
Spezia_cn.pdf
IVG_sd_atex_it.pdfatex_it.pdf
IVG_sd_atex-en.pdfatex-en.pdf
IVG_sd_atex_ted.pdfatex_ted.pdf
IVG_sd_atex_fr.pdfatex_fr.pdf
IVG_sd_atex_cn.pdfatex_cn.pdf
See all documents
Code Inside diameter Outside diameter Working pressure Burst pressure Weight nominal Length max
mm inch mm inch bar psi bar psi kg/m lbs/ft m ft
2200441 13 1/2 24 0,95 16 240 64 960 0,36 0,24 120 400
2200442 19 3/4 31 1,22 16 240 64 960 0,53 0,36 120 400
2200443 25 1 37 1,46 16 240 64 960 0,65 0,44 120 400
2200444 32 1-1/4 44 1,73 16 240 64 960 0,84 0,56 120 400
2200445 38 1-1/2 51 2,01 16 240 64 960 1,04 0,70 120 400
2200446 50 1-31/32 66 2,60 16 240 64 960 1,66 1,12 120 400
2200447 63,5 2-1/2 79,5 3,13 16 240 64 960 2,04 1,37 120 400
2200448 75 2-61/64 91 3,59 16 240 64 960 2,34 1,57 120 400
1499742 100 4 116 4,57 16 240 64 960 3,05 2,05 120 400
